Sintered PTFE Filters: Advanced Filtration for Demanding Environments

Introduction to Sintered PTFE Filters

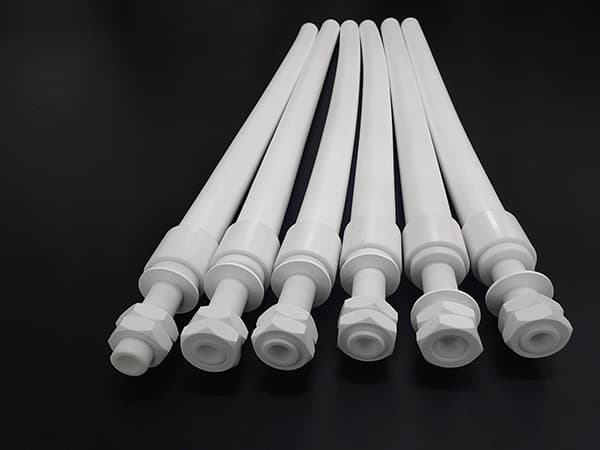

Sintered Polytetrafluoroethylene (PTFE) filters are sophisticated filtration options made from great PTFE resin particles built and integrated with a regulated heating (sintering) process. This develops a robust, permeable framework with specifically regulated pore dimensions (0.1 to 150 microns) and high gap volume (as much as 90%), making sure high flow rates and low pressure decrease. Trick residential or commercial properties consist of extreme chemical inertness (resistant to acids, bases, solvents throughout a broad pH range), integral hydrophobicity (repels water, critical for gas filtration), amazing thermal stability (as much as 260 ° C constant, 288 ° C tours), and a smooth, non-stick surface area that streamlines cleansing and prolongs life-span. These filters offer premium resilience contrasted to traditional media.

What are applications of Sintered PTFE Filters?

Sintered PTFE filters are crucial in industries requiring strict filtration under severe conditions:

• Pharmaceutical & Biotechnology: Sanitation (0.22 µm for microbes), liquid/gas filtering, medicine shipment.
• Semiconductor & Electronics: Ultrapure water/gas (0.1 µm), moisture/particulate security.
• Chemical Handling: Dealing with aggressive chemicals, wastewater therapy, exhaust gas.
• Food & Drink: High health, chemical compatibility.
• Medical Tools: Biocompatibility, high-temperature sterilization.
• Industrial Air Filtering: Particle elimination, chemical/moisture resistance.
• Seals, Gaskets, Diaphragms, Bellows: Pliable, high compressive stamina (particularly modified PTFE).
• Emerging Applications (Speculative): Electrolyte filtration in batteries, hydrogen manufacturing, carbon capture.

They dependably operate under crucial conditions: heats (-40 ° C to 260 ° C), hostile chemical settings, high pressure differentials (approximately 6 bar), repeated sterilization cycles (e.g., 100 cycles at 121 ° C), and hydrophobic settings.

How is the performance of Sintered PTFE Filters?

Filter effectiveness relies upon rigorous efficiency and adaptable layouts:

• Necessary Efficiency: .
• Bit Retention: Specific micron scores (0.1-150 µm), conference 0.22 µm for sterilization and 0.1 µm for ultrapure applications.
• Flow Price & Pressure Decrease: High circulation due to high porosity, enhanced by pore size circulation and density.
• Mechanical Stamina & Resilience: Robust, holds up against high differential stress and stress and anxiety. Customized PTFE (TFM) significantly boosts stiffness, creep resistance, and flex life.
• Life-span & Cleanability: Non-stick surface area permits very easy cleaning (backflushing, ultrasonic, chemical) and reuse.

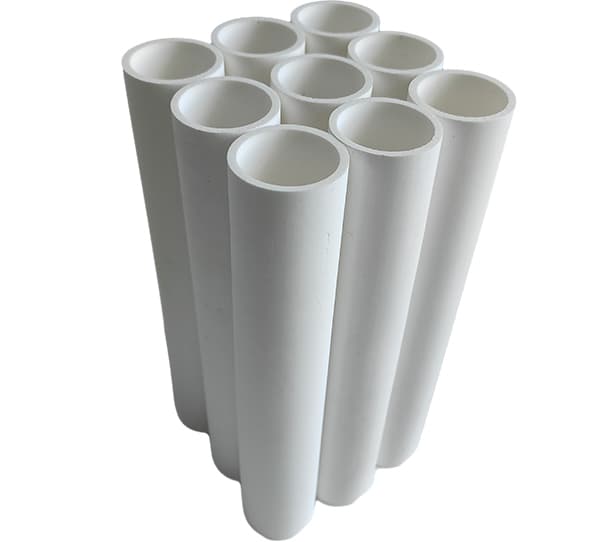

• Type Element Layout: Adjustable right into sheets, tubes, cyndrical tubes, discs, cartridges, pills, and custom-made forms (as much as 60 inches diameter) for varied assimilation.
•

PTFE Product Selection and Sintering Process Optimization.

Filter performance is dictated by PTFE grade and sintering optimization:.

• PTFE Characteristics: Virgin PTFE provides chemical inertness, thermal stability, hydrophobicity, and a non-stick surface.
• Modified PTFE (MPTFE/TFM): Incorporates a small perfluorinated modifier to enhance properties. MPTFE exhibits improved mechanical stamina (lowered chilly circulation, contortion), smoother/less permeable surfaces, increased toughness (flex life, creep resistance), higher dielectric stamina, boosted processability (weldability, thermoforming), and reduced permeability. Examples consist of TFM-1600. Additives like bronze can better boost wear resistance.
• Sintering Refine: Involves powder prep work, compaction into a "environment-friendly" body, regulated heating to fuse bits without full melting, and slow air conditioning. Optimization of particle size/shape, sintering temperature, time, and stress exactly controls pore size distribution, porosity, and mechanical toughness.

Performance Characterization and Validation Approaches.

Extensive testing guarantees filter reliability, specifically in important applications controlled by FDA and GMP criteria (e.g., Pre-Use Post-Sterilization Integrity Checking - PUPSIT):.

• Stability Checking (Non-destructive): .
• Bubble Point Examination: Procedures stress at which gas constantly bubbles through a wetted filter, suggesting biggest pore size.
• Diffusion/Forward Circulation Examination: Procedures gas flow with a wetted membrane layer below the bubble factor, showing stability and pore circulation.
• Pressure Hold Examination: Keeps an eye on stress decay with time to discover leakages.
• Water Intrusion Examination (WIT): Assesses hydrophobicity and integrity by gauging water circulation via the filter.
• Fragment Retention Efficiency: .
• Bacterial Obstacle Testing (ASTM F838): Harmful examination utilizing Brevundimonas diminuta for 0.2 µm filters to confirm clean and sterile effluent.
• Flow Rate & Stress Go Down Characterization: Evaluates circulation attributes and uses strategies like SEM and porometry to gauge pore dimension circulation and evaluate fouling.
• Other Validation Examinations: Opposite flow screening, autoclave cycle screening (e.g., 100 cycles at 121 ° C), extractables screening, organic safety and security testing, and efficiency under numerous running temperatures and pressures.

Design Optimization Methods and Future Developments.

Constant development intends to enhance performance, longevity, and cost-effectiveness:.

• Advanced Geometries & Composite Structures: .
• Gradient Porosity: Multi-stage filtration within a solitary component, improving dirt-holding ability.
• Integrated Circulation Channels: Maximized interior courses for lowered pressure decline and attire circulation.
• Pleated Layouts: Made best use of area for greater circulation and capability.
• Composite Frameworks: Integrating PTFE with inflexible scaffolds (e.g., metal, polymer) or ingredients (e.g., bronze) for boosted mechanical stamina or certain residential or commercial properties.
• Surface area Adjustment: Therapies for enhanced oleophobicity or catalytic buildings.
• Emerging Manufacturing Technologies (Ingredient Manufacturing - AM): While straight 3D printing of PTFE is challenging, AM principles can produce complex, customized permeable assistance frameworks or filter elements with customized pore networks, tortuosity, and area, enabling fast prototyping and optimization.
• Future Developments (Speculative): .
• Self-Cleaning Filters: Integrated devices for autonomous cleaning.
• " Smart" Filters: Embedded micro-sensors for real-time monitoring of stress, flow, and contaminants, allowing anticipating upkeep.
• Flexible Porosity: Dynamically adjusting pore dimension in feedback to altering problems.
• Improved Fouling Resistance: Unique surface chemistries or anti-fouling layers.
• Lasting Production: Focus on lowered power, waste, and recycling.
